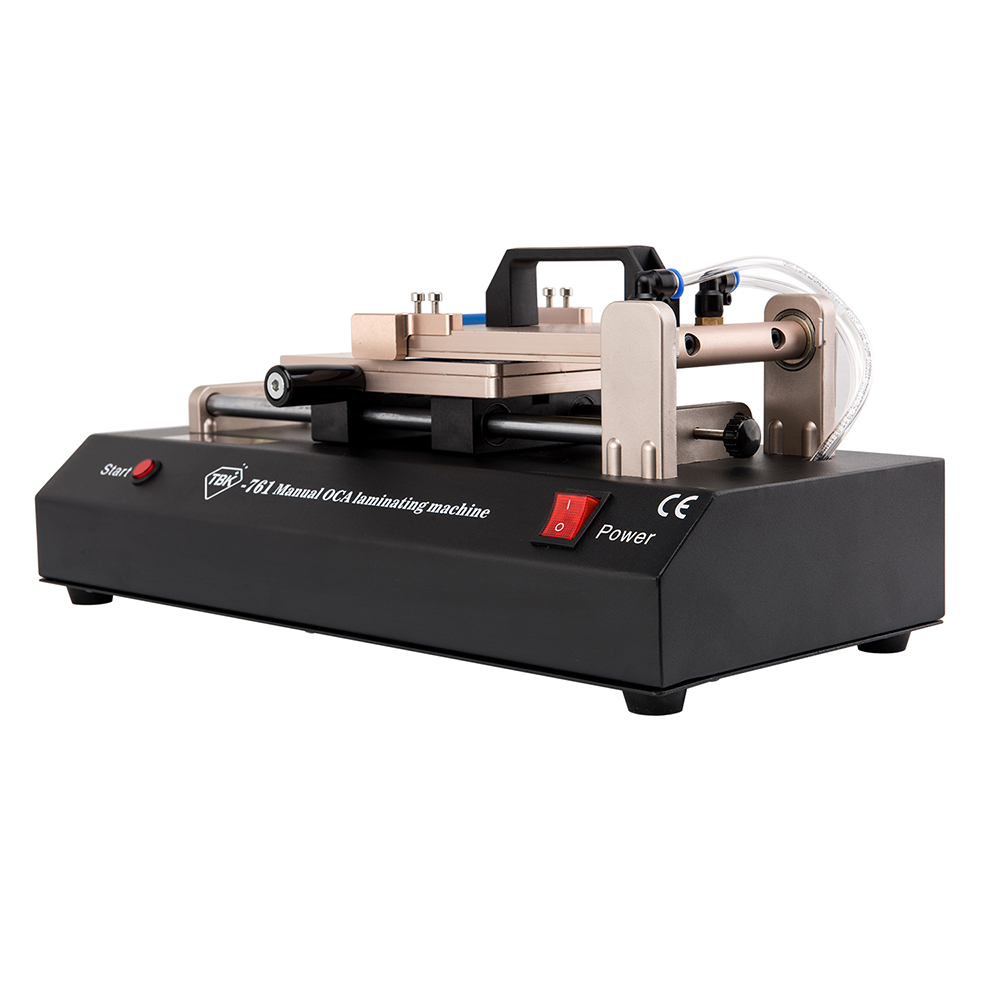

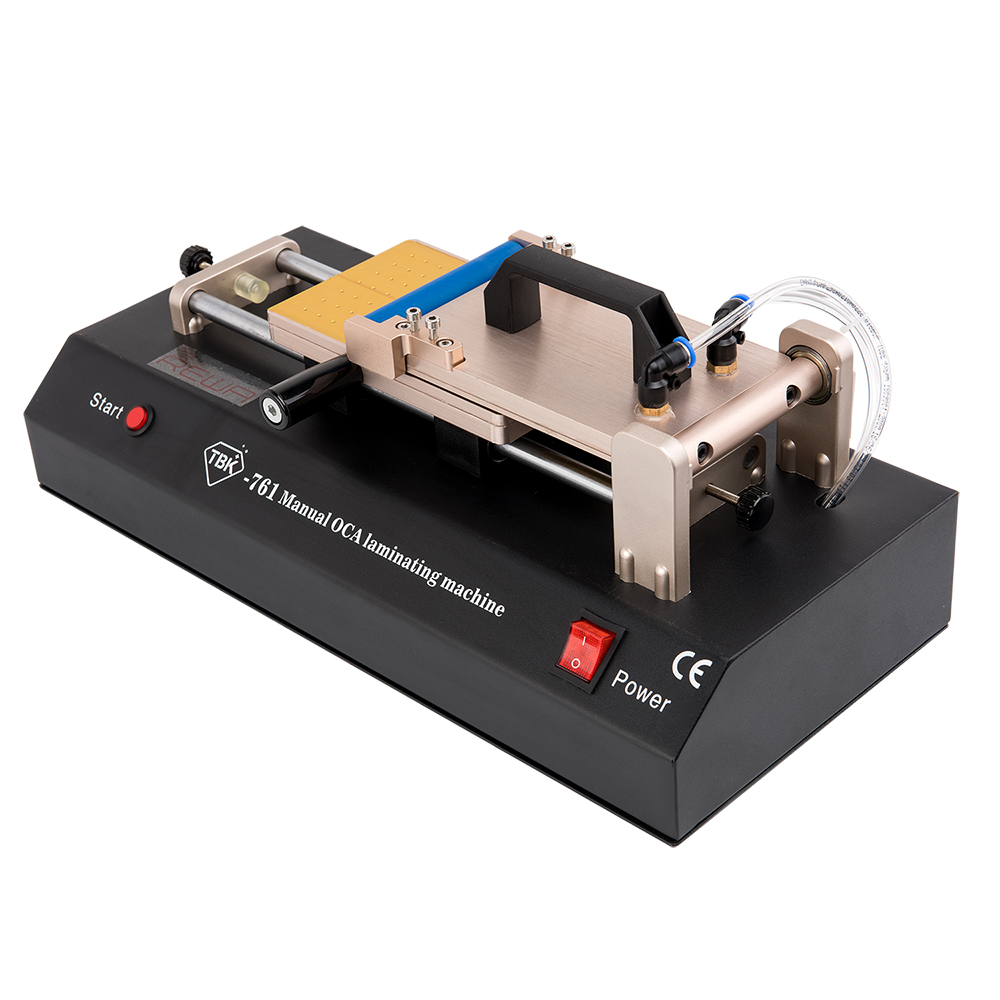

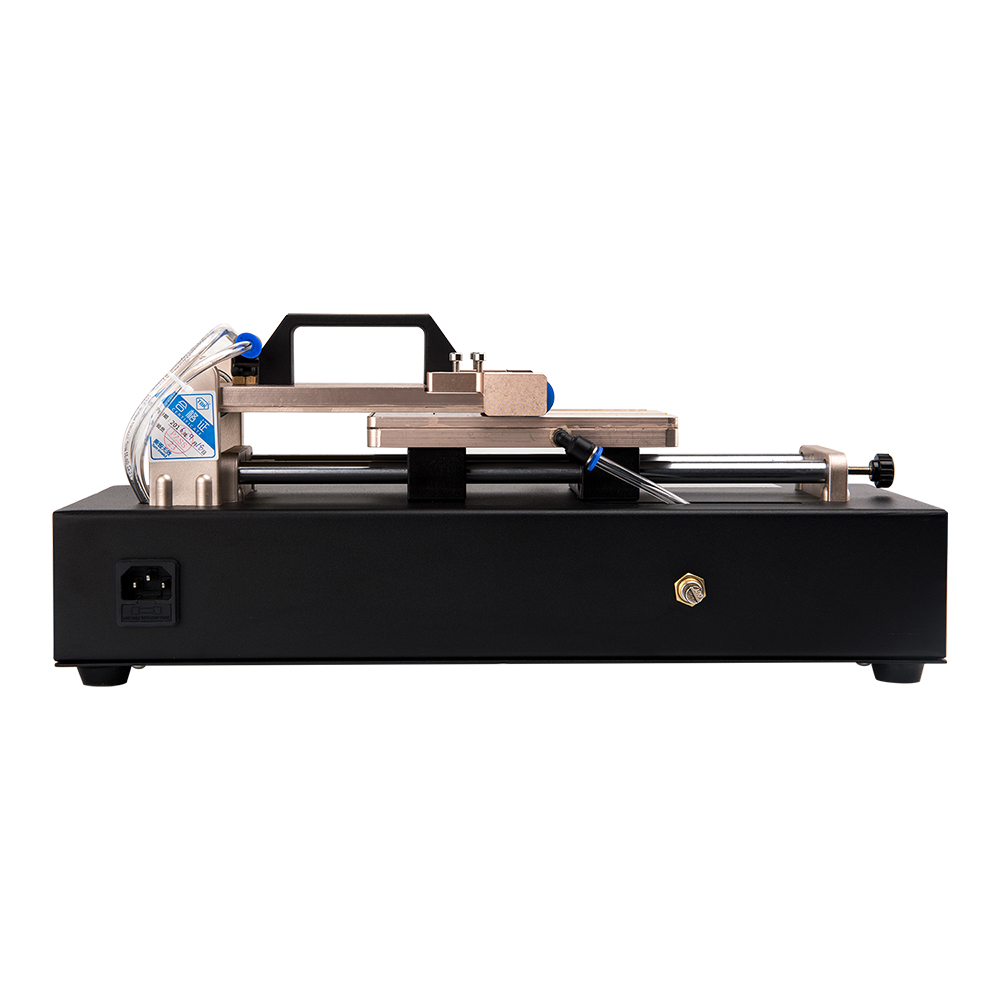

The TBK 761 Manual Film Laminating Machine is used to laminating the OCA and polarized film, and it is suitable for 3.5~6 inch LCD display.
● Power: 100 W
● Net weight: 7.5 KG
● Gross weight: 9 KG
● Voltage: 110 V/220 V
● Plug types: EU plug; US plug; UK plug.
● Material: Aluminum alloy
● Machine size: 52*31*27 cm (L*W*H)
● Working environment : 20~30 degrees Celsius, dust free workshop.
Note: Please remark the plug type you prefer before the payment.
Please remark the standard voltage in your country before the payment.
The delivery time (working time) of 110V is about 5 - 8 days, 220V is about 6 days.
● High accuracy alignment
● Low noise with vaccum pump built-in
● Easy operation with only few steps
● For OCA, polarized film, and protector film laminating.
● Power on and place the LCD on the platform
● Place the right series OCA to the LCD and adjust the LCD outline
● Click the button to suck, suck the OCA with puting the up platform down slowly.
● Put up the up platform and tear the OCA protector
● Place the up platform to the LCD slowly
● Move the platform to the left at constant speed
● Put up the up platform, finished.
_________________________________________________________________________________
Foam box + carton box
