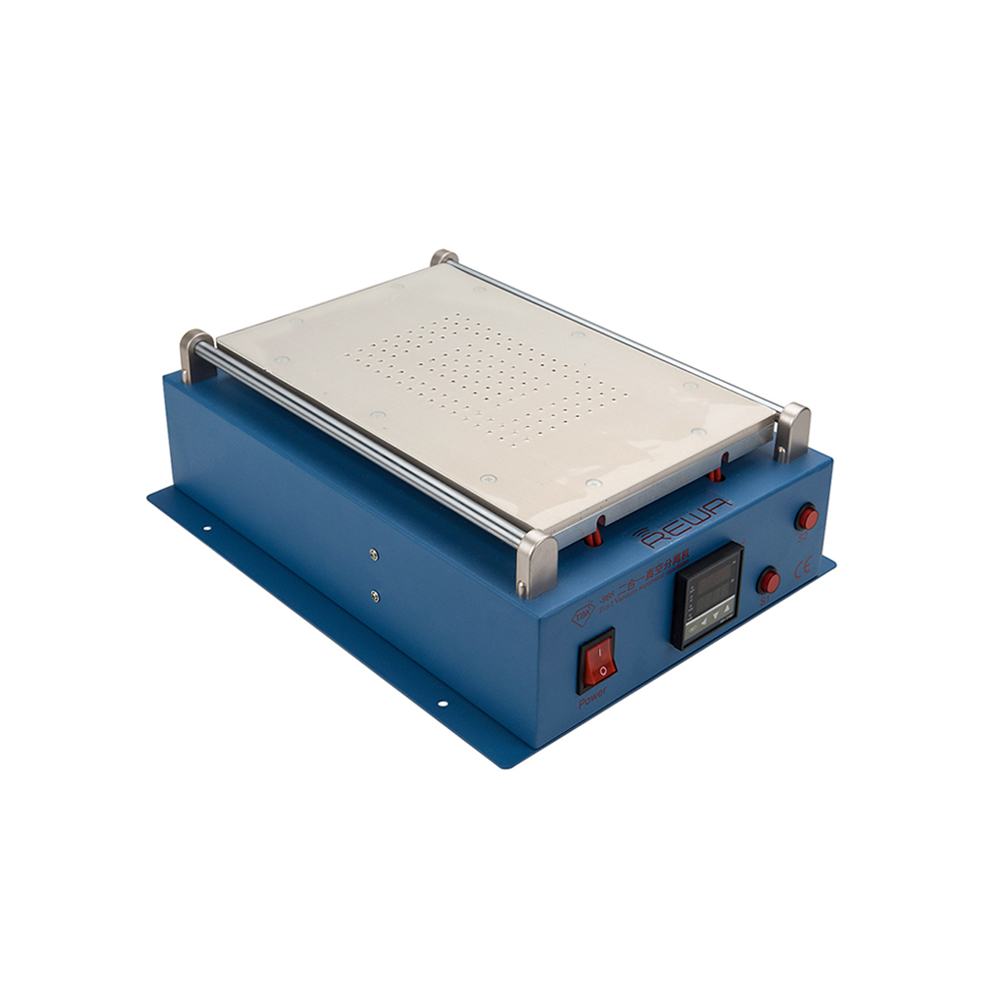

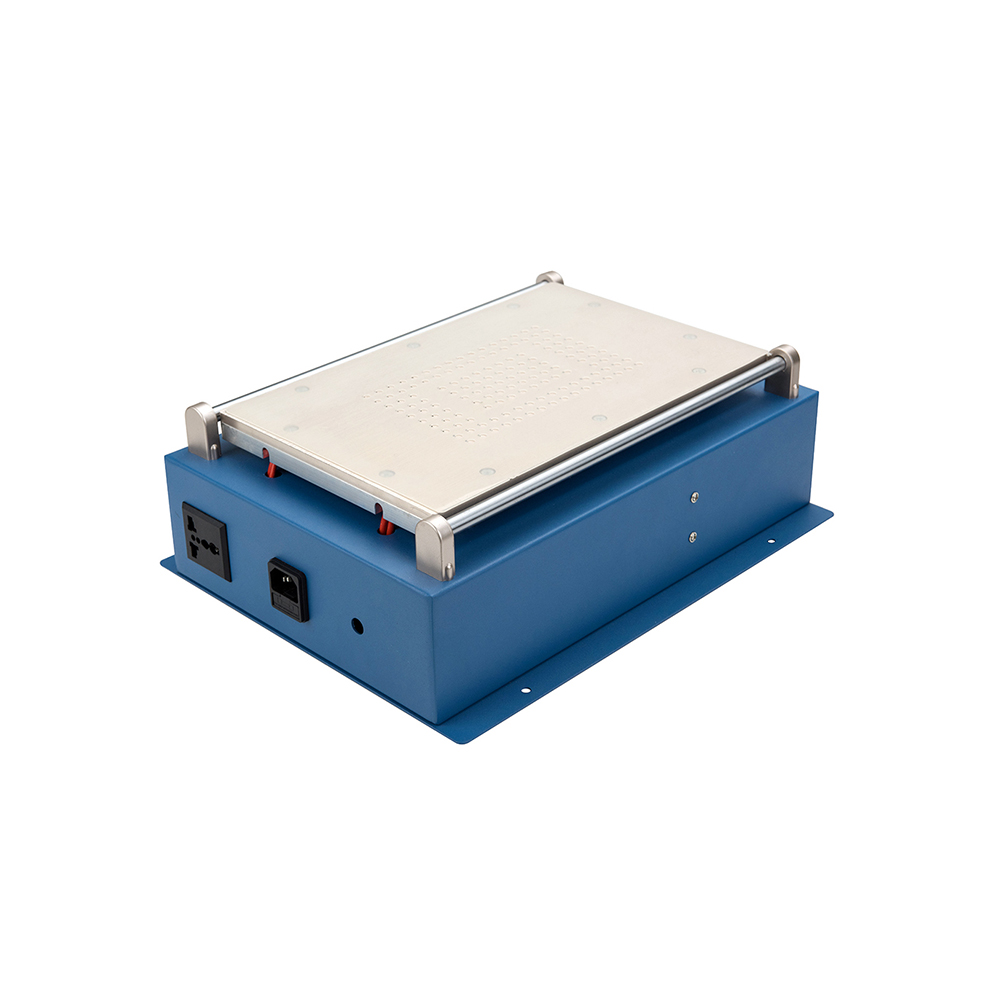

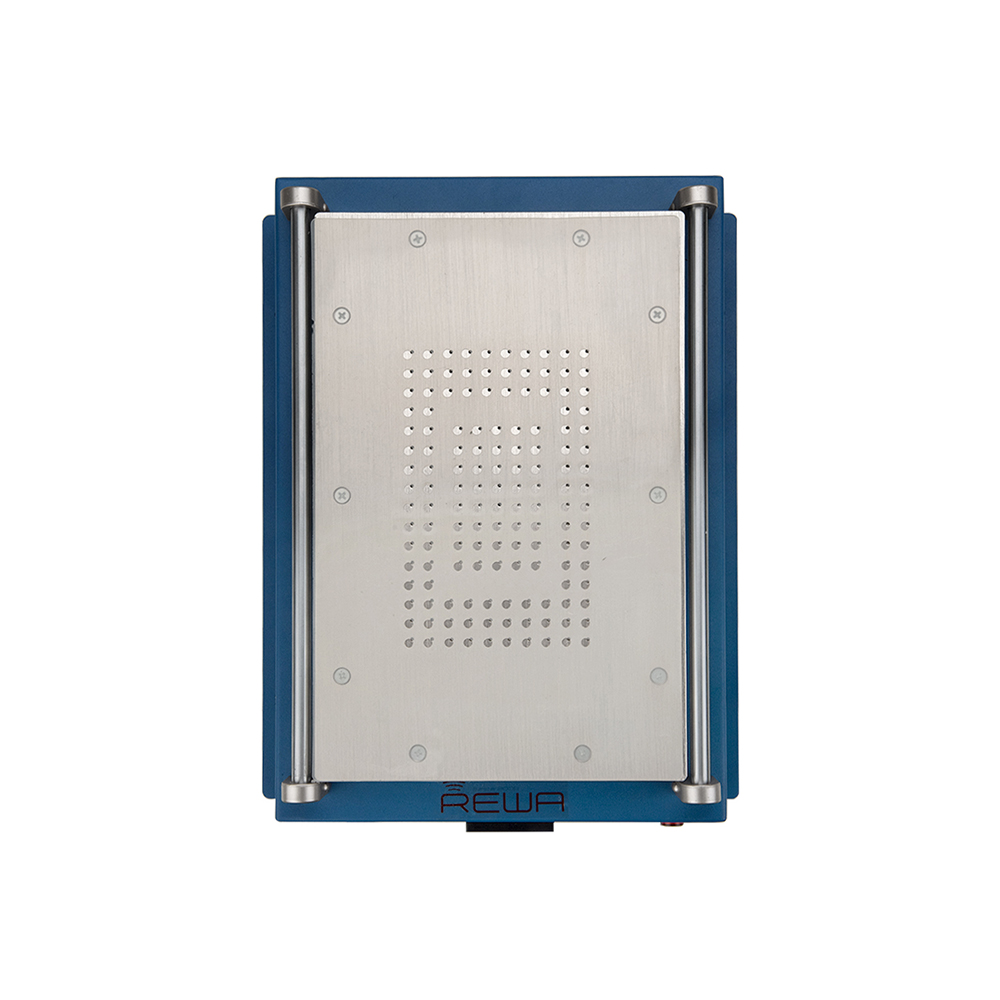

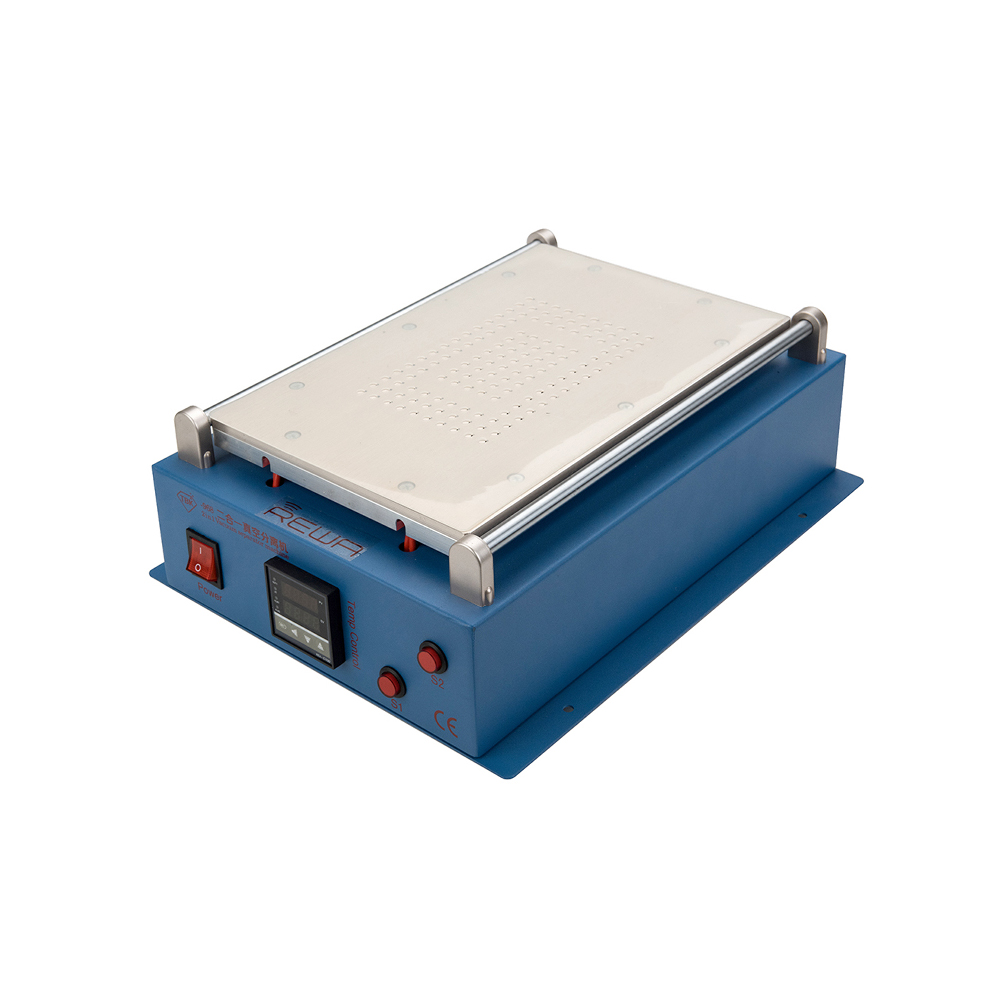

TBK 968 Manual Vacuum LCD Separating Machine with Built-in Pump

Description

The TBK 968 manual vacuum LCD separating machine with built-in Pump is used for mobile phone LCD repair and tablet PC refurbishing.

Specifications

● Supply: AC 100-240 V

● Power: 500 W

● Net weight: about 7.5 KG

● Size: 240*370*120 mm

● Voltage: 110 V/220 V

● Plug types: EU plug; US plug; UK plug

● Function: separate the mobile phone's touch screen from an LCD or glass lens.

Features

● The LCD separator is suitable for phones and tablets that are under 14 inches.

● Auto heating metal plate, the maximum temperature is 400 centigrade. The temperature should be set to 80 centigrade to 100 centigrade when you do the job on

iPhone and galaxy series.

● Built-in air pump, divided mobile phone and tablet separation area.

● The anti-static body prevents the LCD and flex cable from being damaged. Safe-with safety power system inside, avoiding the electric leakage problem.

Note: Please remark the plug type you prefer before the payment.

Please remark the standard voltage in your country before the payment.

The delivery time (working time) of 110 V is about 5 - 8 days, 220 V is about 6 days.

How to use the TBK 968 manual vacuum LCD separating machine with built-in Pump?

● Connect to the power

● Put the screen glass side on the pad

● Preheat the screen with the temperature set 90℃

● Click the button to suck

● Separate the LCD with moving to and fro the cutting wire till LCD separated. (Note: If glass cracked, laminate a tape on the glass, avoid debris

interrupting)

Packing

Shockproof Foam + Hard Carton Box + Plywood Case
