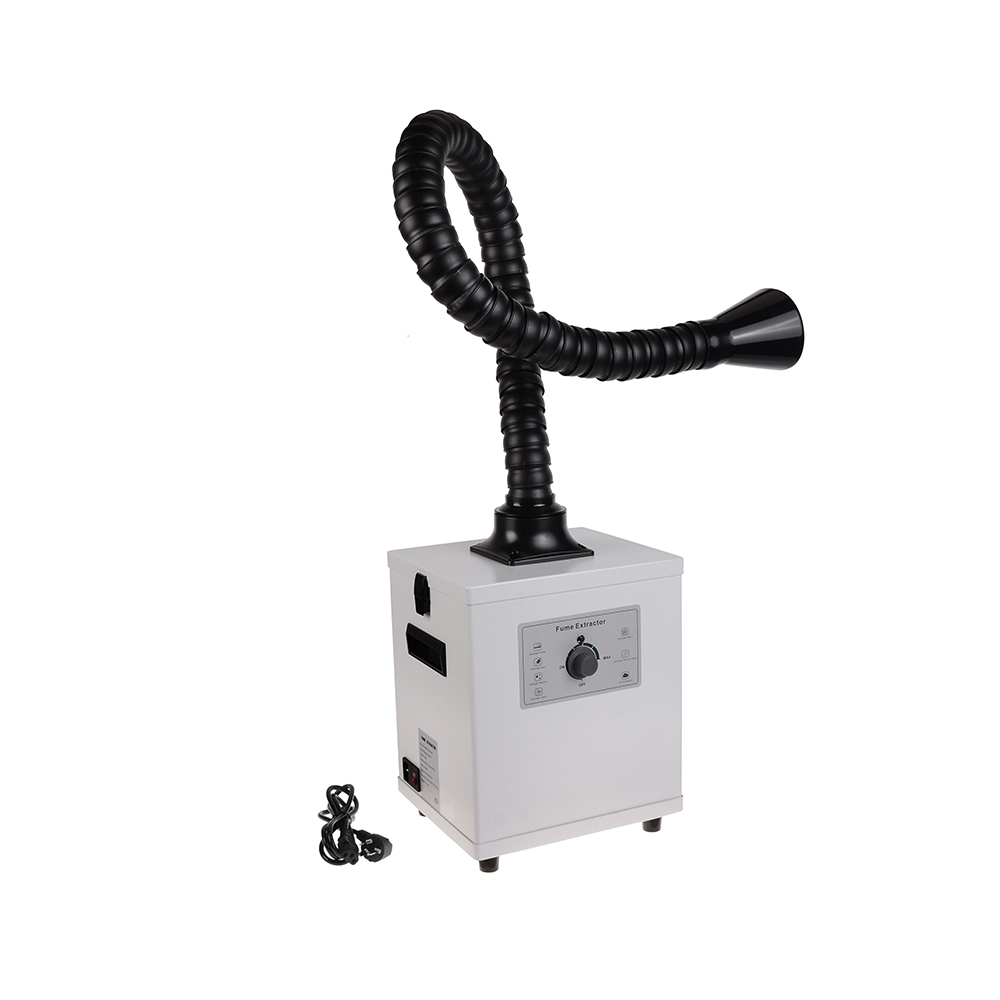

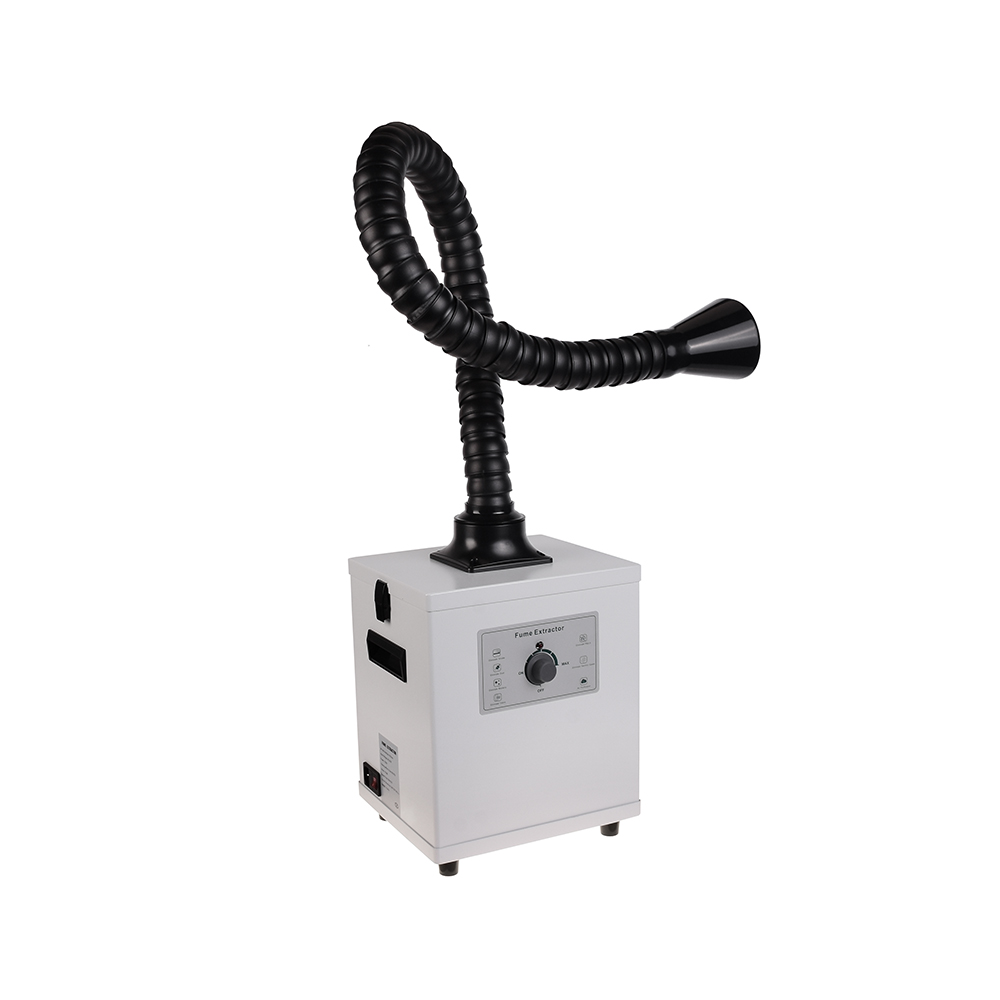

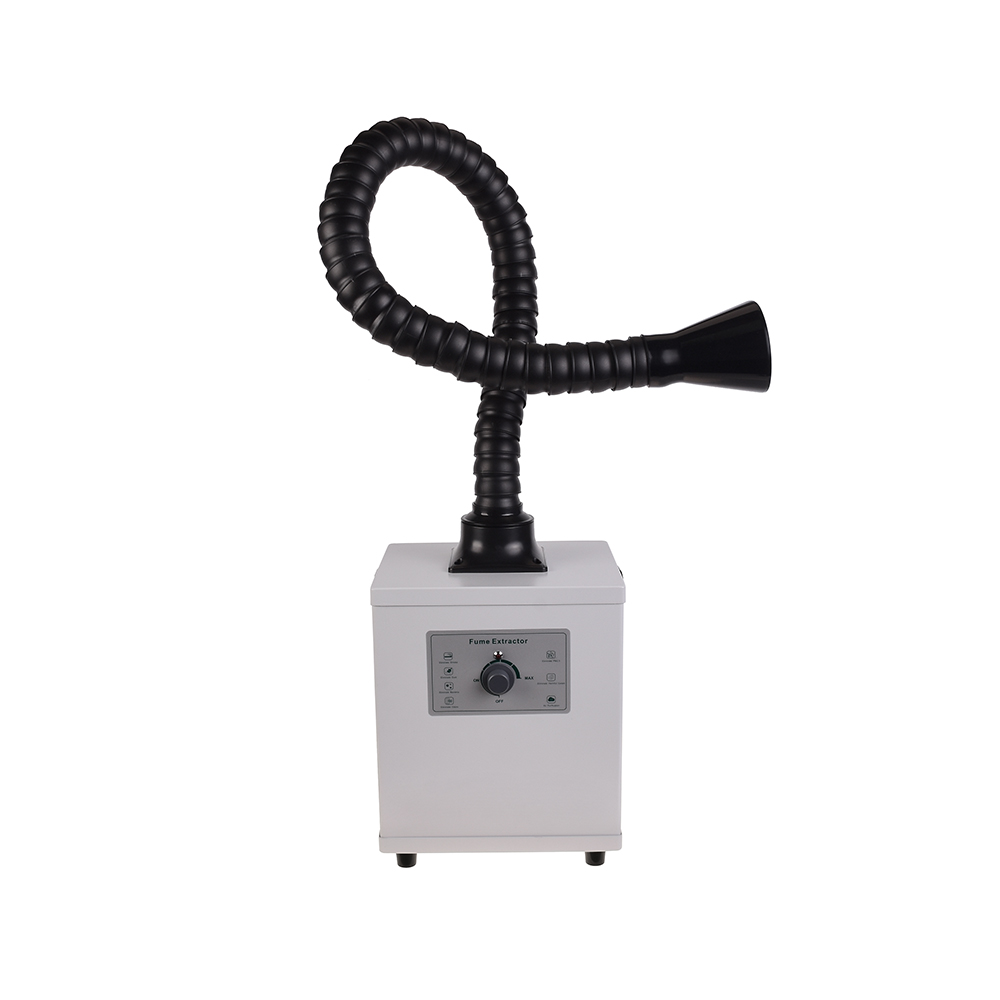

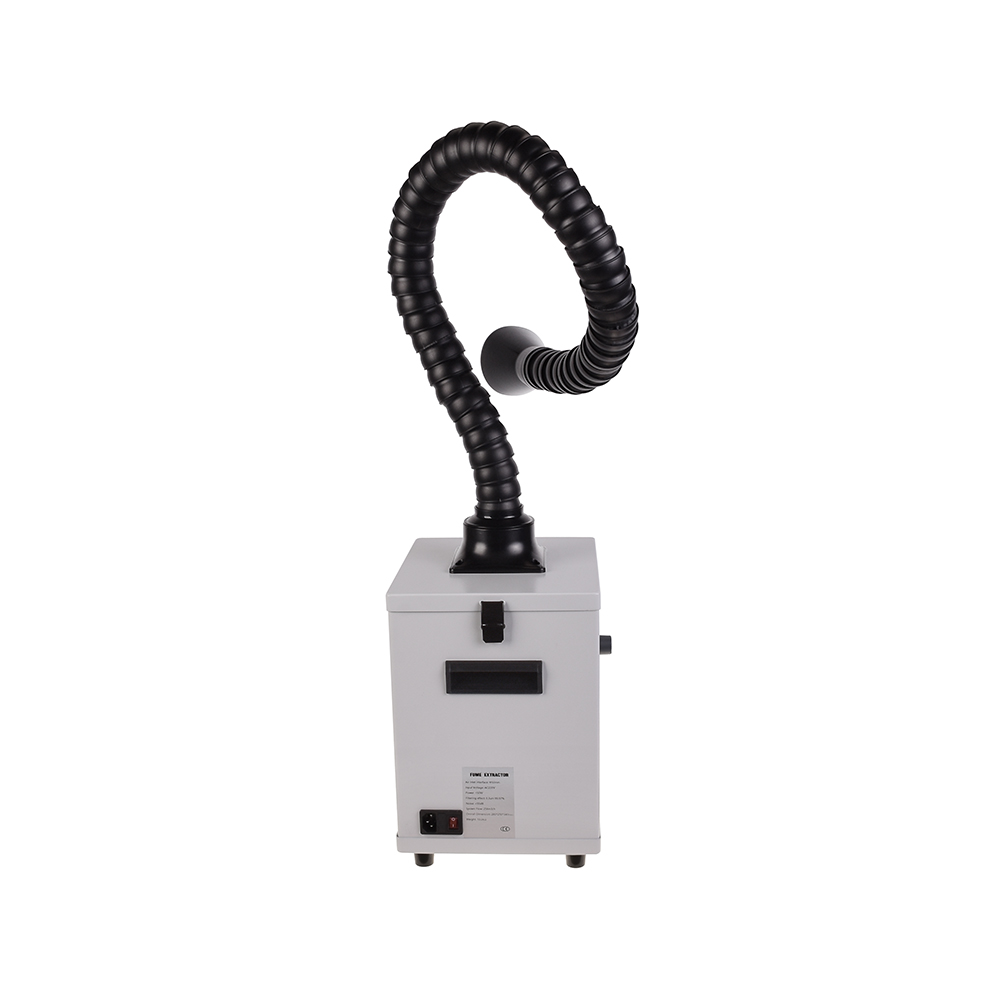

The fiber laser engraving fume extractor is used to eliminating smoke, dust, bacteria, odors, PM2.5, harmful gases, and air purification. It is matched
with the back glass housing separator laser marking machine.
● 3* Filter net
● 1* Fiber laser engraving fume extractor
● Air inlet interface:Φ50mm
● Voltage: 110V, 220V.
● Power: 150W
● Filtering effect: 0.3um 99.97%
● Noise:<55dB
● System flow:258 m3/h
● Overall dimension:280*250*340mm (L*W*H)
● Gross weight: 23Kg
● The fiber laser engraving fume extractor is easy to install.
● The filter cotton can be replaced separately. It can extend the use time of filter cotton, and also low the use cost of the filter cotton.
Note: Please remark the plug type you prefer before the payment.
Please remark the standard voltage in your country before the payment.
The delivery time (working time) of 110V about is 3-5 days, 220V is about 3 days.
● Don't operate the fiber laser engraving fume extractor in the place, which high temperature (environment temperature exceed 60℃), easy to explode,
burn, with liquid and oil pollution.
● The power line must be grounded for use
● When the fume extractor inner voltage high to 310V. Non-professional personnel don't open the back plate to examine
● Don't change the filter cotton when the fume extractor is working.
Foam box + carton box
