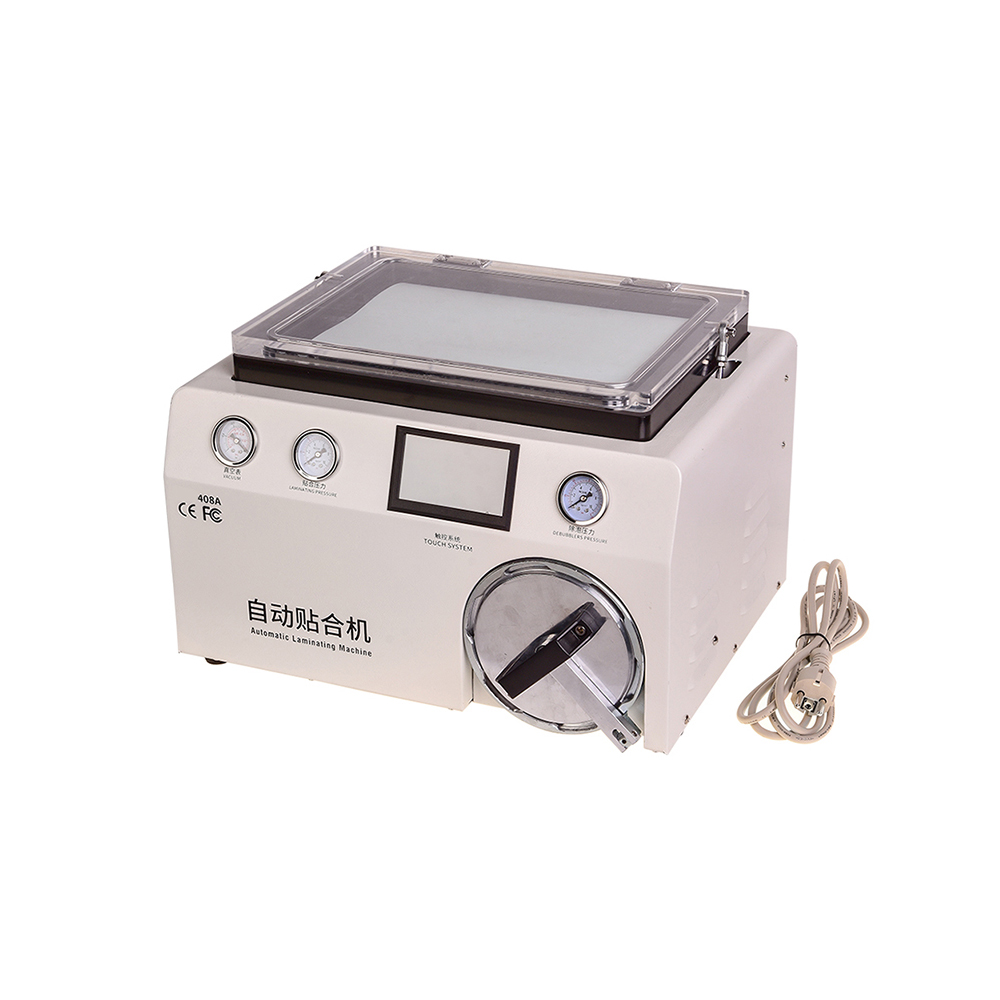

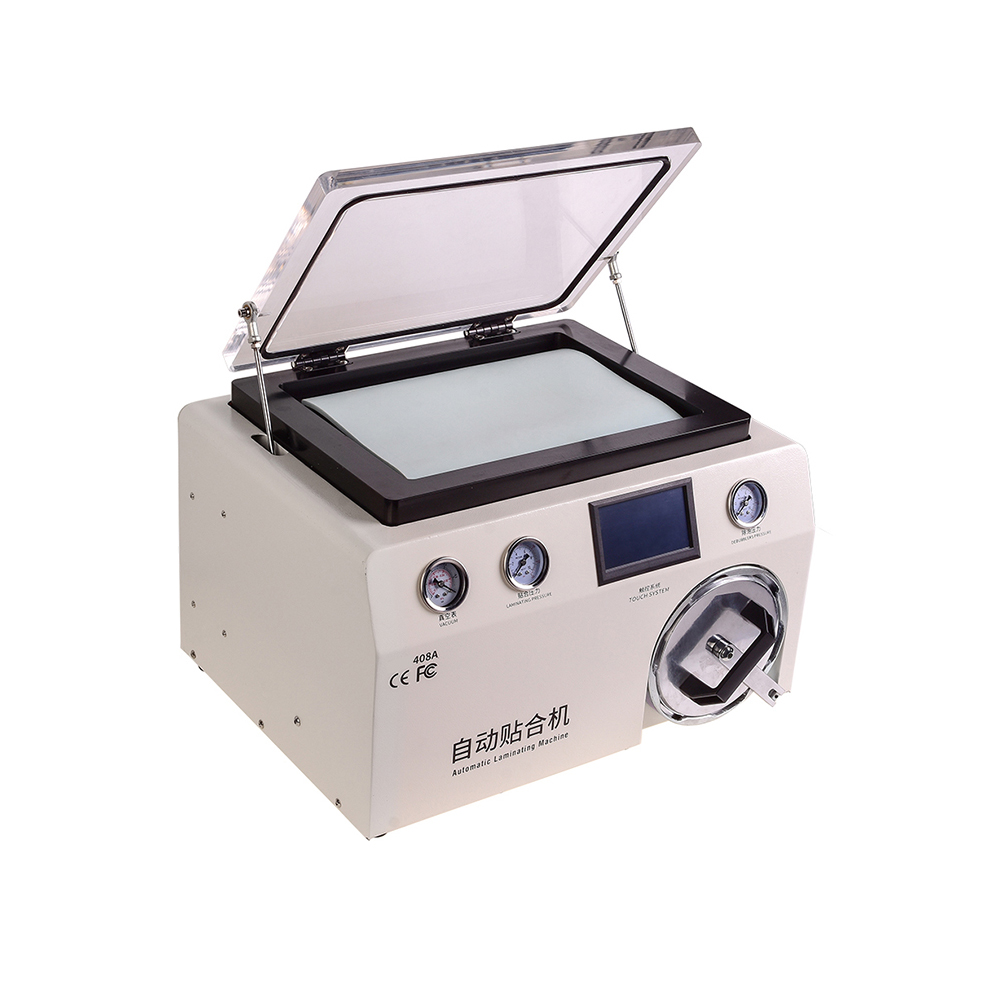

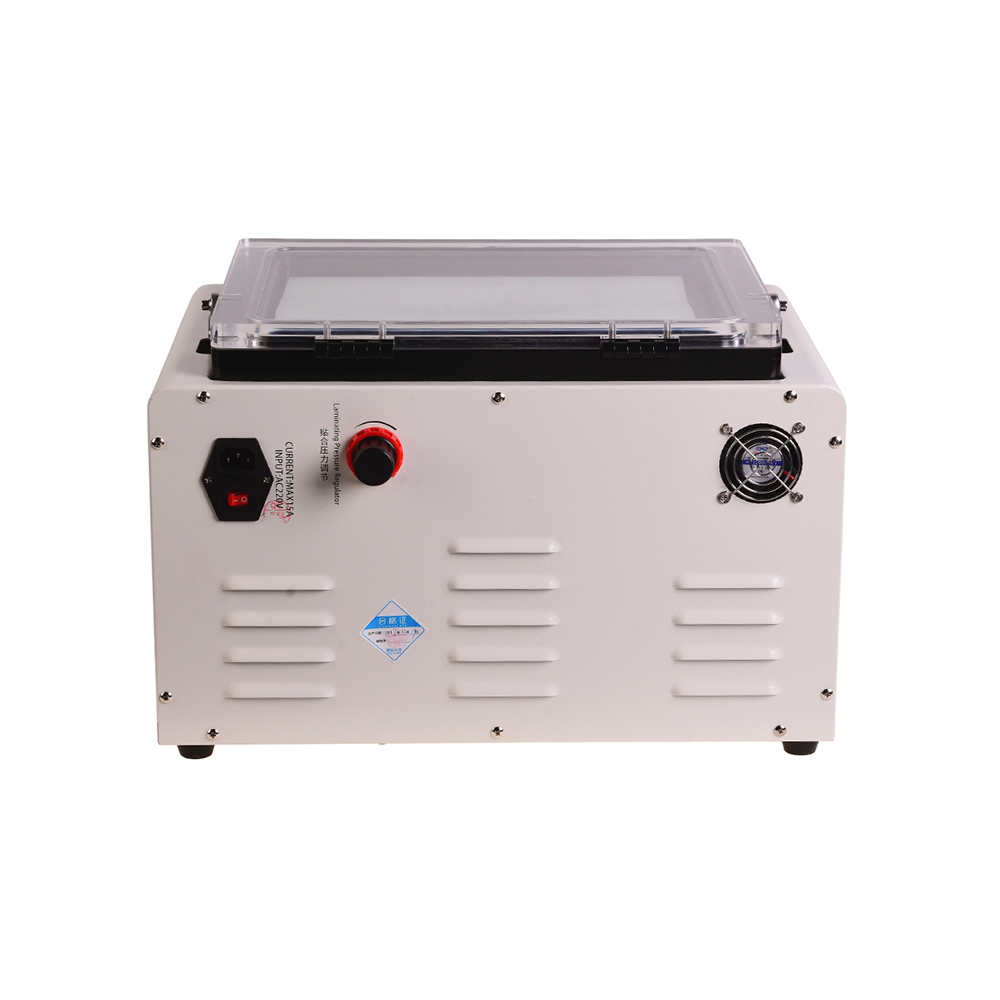

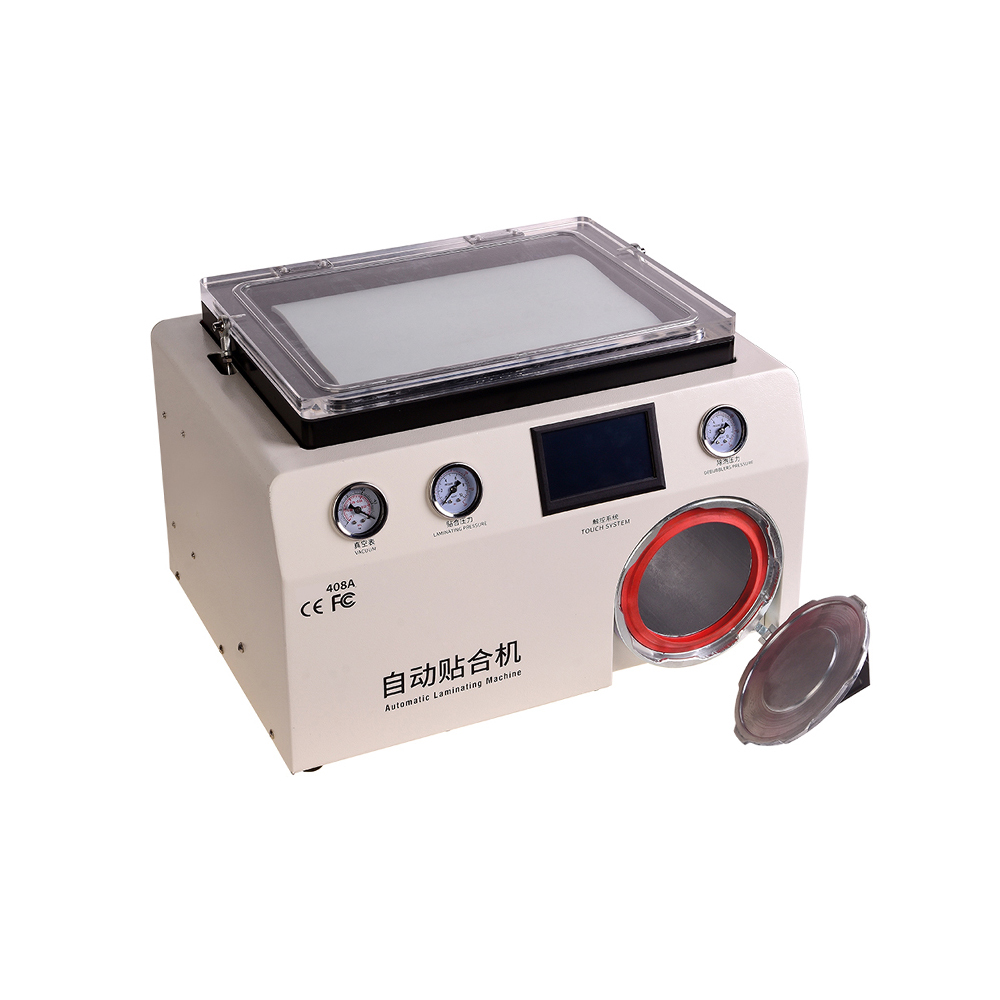

Vacuum LCD Laminating and Bubble Removing Machine - TBK 408A - OEM NEW

Specification

● Supply: AC 220 V/110 V

● Power: 800 W

● Machine Size 480*360*260 mm (L*W*H)

● Packing size: 560*580*450 cm (L*W*H)

● Working area: Max 15 inch

● Net weight: 42 KG

● Wood box packing weight: 53 KG

● Voltage: 110 V/220 V

● Plug types: EU plug; US plug; UK plug

● Advantage: 15 inch working area, transparent cover and built-in autoclave.

Note: Please remark the plug type you prefer before the payment.

Please remark the standard voltage in your country before the payment.

The delivery time (working time) of 110 V is about 5 - 8 days, 220 V is about 6 days.

Features

● Laminating and bubble removing 2-in-1 design.

● 15 inch large laminating area.

● Transparent cover design, easily view the laminating process.

● Built-in double pump, low noise.

● Dual cooling system, quick heat dissipation.

● Easy operation, fast and efficient.

● Suitable for all kinds of tablets and the straight screen phones.

How to use the Vacuum LCD Laminating and Bubble Removing Machine - TBK 408A?

● Connect the power cord and turn on to run the machine.

● Enter the setting mode to set the fit time for 8 minutes, and then enter the automatic mode for the lamination. Just need place the well-aligned LCD onto the

platform. Set pressure to be 0.4Mpa and then cover up the machine. Press the start button to start the lamination process.

__________________________________________________________________________________

Package included

● 1 x TBK-408A Vacuum LCD Laminating and Bubble Removing Machine

● 1 x Power Cable

Packing

Anti-Shock Foam box + Hard Carton box + Wooden Packing

After-sale service

Please feel free to contact us for any problems at any time：service@poerl.com
